IMPLANT MAINTENANCE MADE SAFE, EASY, AND EFFECTIVE
Stress-free implant
maintenance
Slender tips easily
access those
hard-to-reach areas
Safely remove
calculus and debris
Easy maintenance
without the need for
sharpening
Sickle #204S
CEIS204S
Mirror image blades on a short-reach terminal shank that is set at 40° to the handle. The blades have a reach of 4.5 mm and a width of 0.9 mm. Featuring our DuraLite® ColorRings® Handle, additional handle options are shown below.

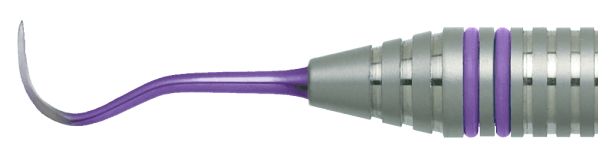

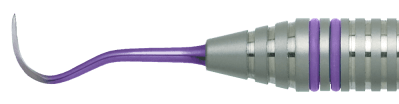

Offset Sickle N67
CEISN67
Both sickles have an identical moderate size, medium-reach length and blade widths of 0.9 mm that taper to a point. The tips have a 10° mirror image offset to allow better access to anteriors and premolars. This design is also known as H6/H7. Featuring our DuraLite® ColorRings® Handle, additional handle options are shown below.

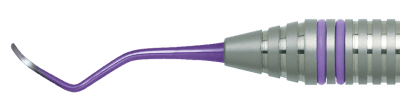

Barnhart #5-6
CEISBH5-6
The terminal shank is 1 mm in diameter and 10 mm long with a blade width of 0.8 mm. Barnhart curettes have universal blades that have sharp cutting edges on both sides of the blade and a rounded toe. The terminal shanks of Barnhart curettes are long and slender. Featuring our DuraLite® ColorRings® Handle, additional handle options are shown below.

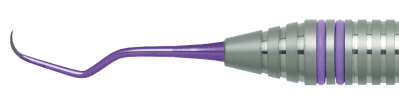

Anterior Scalette N137M
CEISN137M
Combines a moderate size, medium-reach sickle that has a blade width of 0.9 mm that tapers to a point with the universal curette that has sharp cutting edges on both sides of the blade and a rounded toe. The curette has a 0.8 mm blade width and a 1 mm diameter terminal shank with a 9 mm reach. Featuring our DuraLite® ColorRings® Handle, additional handle options are shown below.

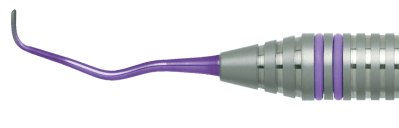

Langer #1-2
CEISLN1-2
Has bends similar to the Gracey 11-12. The terminal shank is 1 mm in diameter and 9 mm long with a blade width of 0.9mm. Featuring our DuraLite® ColorRings® Handle, additional handle options are shown below.
Langer #3-4
CEISLN3-4
Has bends similar to the Gracey 13-14. The terminal shank is 1 mm in diameter and 9 mm long with a blade width of 0.9mm. Featuring our DuraLite® ColorRings® Handle, additional handle options are shown below.

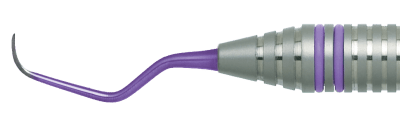

Langer #5-6
CEISLN5-6
Has bends similar to the Gracey 7-8. The terminal shank is 1 mm in diameter and 16 mm long with a blade width of 0.9 mm. Featuring our DuraLite® ColorRings® Handle, additional handle options are shown below.
How to Scale Around an Implant – Implamate Part 1/3
How to Scale Around an Implant – ImplaMate Part 2/3
How to Scale Around an Implant – ImplaMate Part 3/3
Our popular series of ImplaMate® scalers are designed to work more safely with implants because they are made with the same material…solid titanium. Even better, ImplaMate scalers are available in a wide range of familiar patterns that are easy to adapt with no “learning curve.” All tips feature a purple tint for easy identification.
Elevate Your Implant Maintenance Now:
-
Has bends similar to the Gracey 7-8. The terminal shank is 1 mm in diameter and 16 mm long with a blade width of 0.9 mm. Featuring our DuraLite® ColorRings™ Handle, additional handle options are shown below.
-
Has bends similar to the Gracey 13-14. The terminal shank is 1 mm in diameter and 9 mm long with a blade width of 0.9mm. Featuring our DuraLite® ColorRings™ Handle, additional handle options are shown below.
-
Has bends similar to the Gracey 13-14. The terminal shank is 1 mm in diameter and 9 mm long with a blade width of 0.9mm. Featuring our DuraLite® ColorRings™ Handle, additional handle options are shown below.
-
Has bends similar to the Gracey 11-12. The terminal shank is 1 mm in diameter and 9 mm long with a blade width of 0.9mm. Featuring our DuraLite® ColorRings™ Handle, additional handle options are shown below.
-
Has bends similar to the Gracey 11-12. The terminal shank is 1 mm in diameter and 9 mm long with a blade width of 0.9mm. Featuring our DuraLite® ColorRings™ Handle, additional handle options are shown below.
-
Combines a moderate size, medium-reach sickle that has a blade width of 0.9 mm that tapers to a point with the universal curette that has sharp cutting edges on both sides of the blade and a rounded toe. The curette has a 0.8 mm blade width and a 1 mm diameter terminal shank with a 9 mm reach. Featuring our DuraLite® ColorRings™ Handle, additional handle options are shown below.
-
The terminal shank is 1 mm in diameter and 10 mm long with a blade width of 0.8 mm. Barnhart curettes have universal blades that have sharp cutting edges on both sides of the blade and a rounded toe. The terminal shanks of Barnhart curettes are long and slender. Featuring our DuraLite® ColorRings™ Handle, additional handle options are shown below.
-
Mirror image blades on a short-reach terminal shank that is set at 40° to the handle. The blades have a reach of 4.5 mm and a width of 0.9 mm. Featuring our DuraLite® ColorRings™ Handle, additional handle options are shown below.
-
Both sickles have an identical moderate size, medium-reach length and blade widths of 0.9 mm that taper to a point. The tips have a 10° mirror image offset to allow better access to anteriors and premolars. This design is also known as H6/H7. Featuring our DuraLite® ColorRings™ Handle, additional handle options are shown below.
